  • INFINI DECK

Superiority of INFINI DECK

INFINI
DECK

  • 이미지

    Able to replace mold

  • 이미지

    No need for steel bar spacer

  • 이미지

    Minimizes support

  • 이미지

    Replaces steel bar placing on site

  • 이미지

    Shortens construction period

  • 이미지

    Enhances constructability

  • 이미지

    Enhances durability

이미지

  • Minimizes temporary work

  • Enables long span slab

  • Enhances constructability

  • Secures economic feasibility

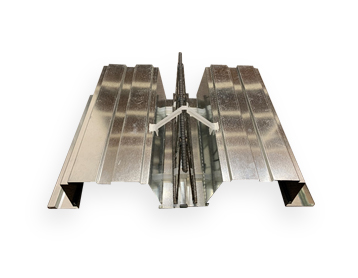

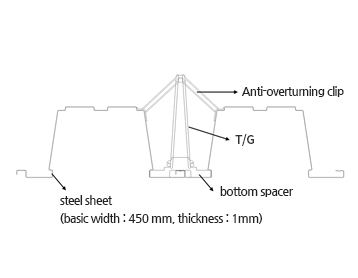

Structure Section and Form
이미지 이미지
INFINI DECK Span Table (Able to construct up to 7.5m without a support)
Steel plate thickness(mm) Conc. thickness (mm) Upper main
reinforcement (EA-mm)		 Bottom main
reinforcement (EA-mm)		 Maximum span (m)
1.0 100 1-D12 2-D12 6.2
1.0 100 1-D13 2-D13 6.4
1.0 100 1-D14 2-D12 6.6
1.0 100 1-D16 2-D13 7.1
1.4 100 1-D16 2-D14 7.5

Foot note 1) Yield Strength : Steel plate : 245N/mm² , Wire : 440/mm²
Foot note 2) Concrete Compressive Strength : 24N/mm²
Foot note 3) Cover Thickness : Upper Part : 20mm, Bottom Part : 30mm

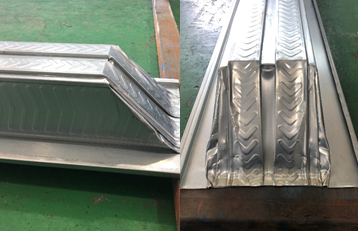

Pilot Production (Molding machine manufacturer)
  • 이미지

    End Part

  • 이미지

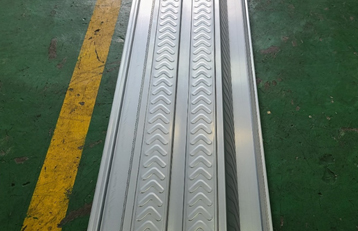

    Side Part

  • 이미지

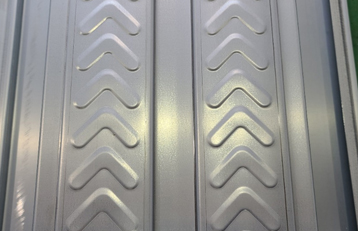

    Upper Part

  • 이미지

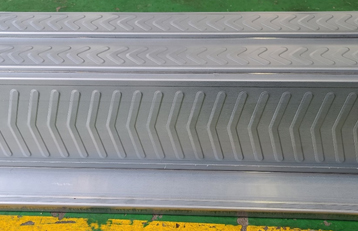

    Upper Part Details
