NOVA DECK / LUNA DECK

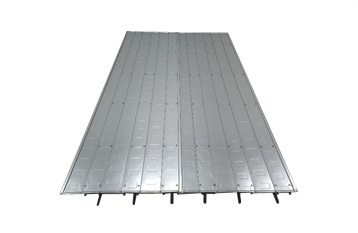

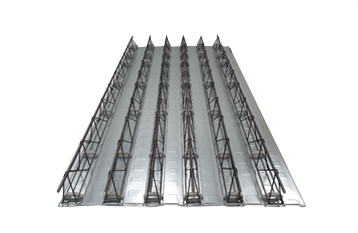

NOVA DECK was manufactured by automatically fabricating DECK PLATE, which is a form supporting the weight of concrete, and truss girder, which is a structural material, without welding work. NOVA DECK is easy to maintain construction quality and facilitates snap identification of any leak thanks to the ease of removing the deck plate (steel plate), while flat and even surface of the floor slab ensures convenient successive works.
Excellent Product by the Public Procurement Service
No weld, flat and even surface and form-less type deck plate
Simple assembly method minimizes field work
Non-support system allows for simultaneous implementation of succeeding process
Reduced construction period (30% shorter than the plywood Form system )
Reduced building maintenance cost (easy to check any potential leak)
Flat finish after the removal of Forms guarantees clean esthetics and convenient succeeding works
Application of no-weld technology-Excellent rust-resistance performance thanks to zinc coating -No welding defect and easy quality inspection
Final assembly of The half-finished products in the destination-Reduced shipping cost
Environment-friendly product with reduced power consumption and no welding defect as truss girders and deck plates were joined together with coupling medium such as spacer and connector.
Excellent coupling performance in the coupler as the coupling device is pressure inserted to the spacer
Simple removal of the deck plate (steel plate) ensures convenient maintenance of floor slabs such as inspection of any possible leaks in the ceiling and floor
Final assembly of The half-finished products in the destination saves shipping cost and guarantees easy export handling.
Flat finish of the ceiling after the removal of Form guarantees clean esthetics and convenient succeeding works

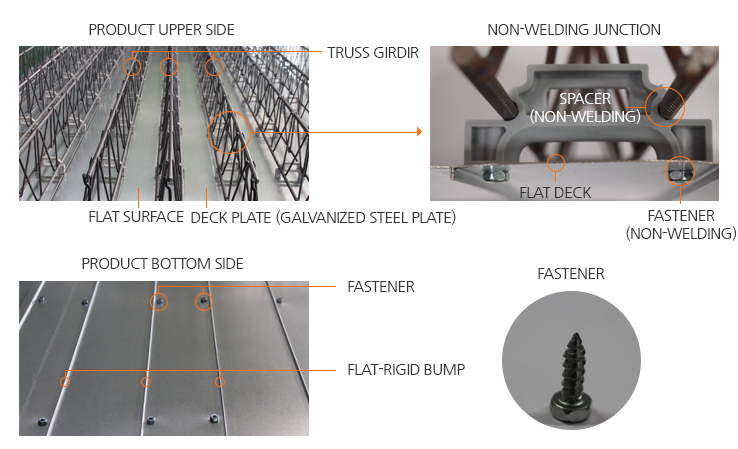

Application of no-welding technology when joining Deck plate acting like a form and truss girder, which is a structural material (Spacer and coupling device)
Application of a technology that guarantees flat and even surface of the ceiling after removal of the Form upon curing of the concrete

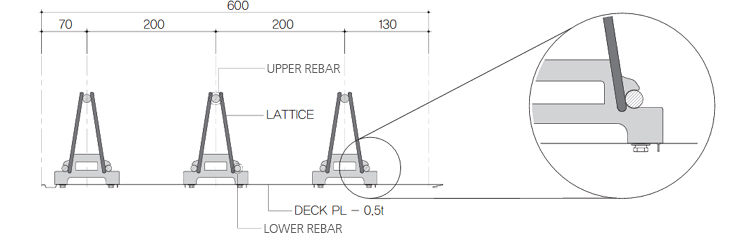

Steel: 0.5mm Melting galvanized steel plate (KSD3506)
Upper rebar, Lower rebar, Lattice: 5~14mm steel wire
Spacer: Synthetic resins H20, 30
Bolt: Galvanized M16X16
Spacer Interval: @400mm
Size: 600X1500~8000mm(W X L)
Patents(No.10-1503809): Spacers for fixing Truss Girder and Combined Structure between Deck Plate and Truss Girder.
Patents(No.10-1590444): Combined Structure between Deck Plates for Ceiling Form Installation
K Mark(No. PB 12016-034): Deck Plate(Nova Deck Plate)
Selection of Best Products by Procurement Agency(No.2018025): Nova Deck Plate(Valid period: Apr. 2 2018 ~ Apr. 1 2021)

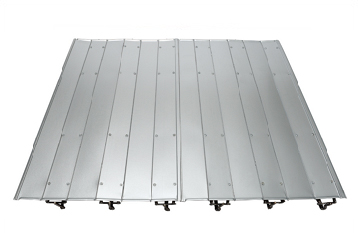

LUNA DECK : A product with reinforced steel plate rigidity (Added embossing)
